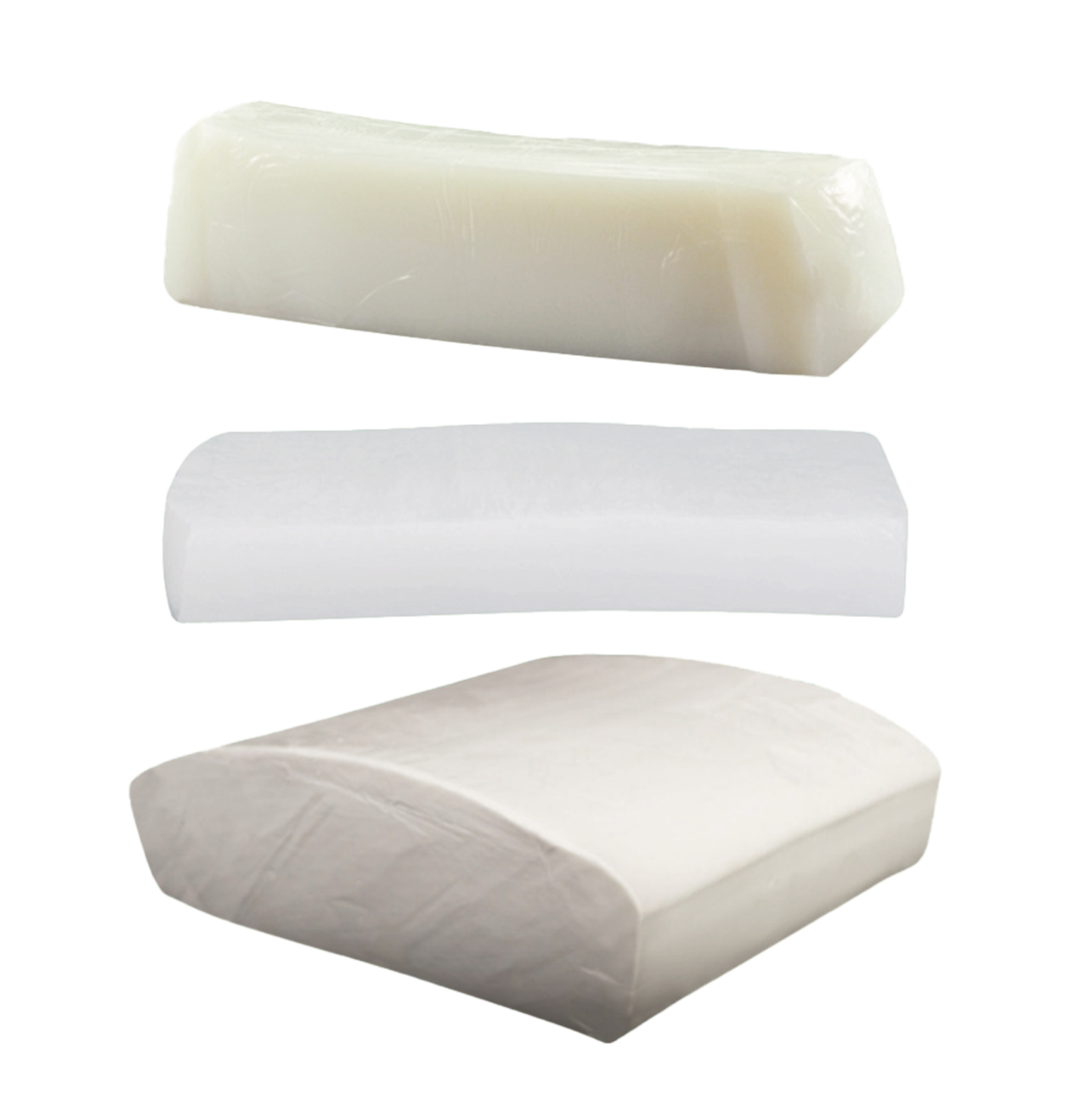

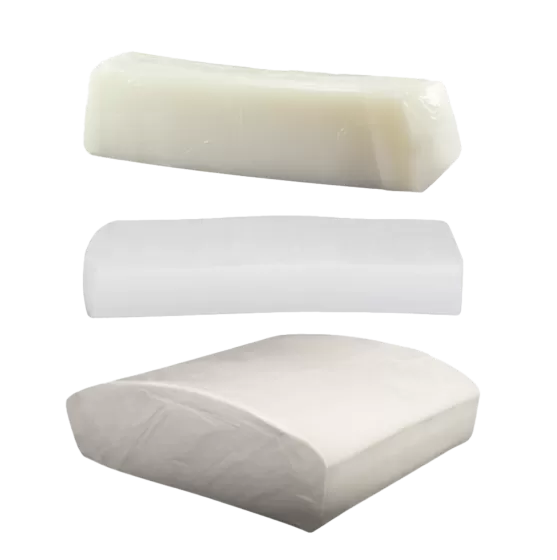

Extruded Fumed/Precipitated Silicone Compound For Wire And Cable

Extruded Fumed Silicone Material/Extruded Precipitated Silicone Material

This product is a heat-vulcanized silicone rubber compound. It uses platinum vulcanization or di-tetra vulcanization and is suitable for extrusion. It offers strong mechanical performance, high tear strength, and stable overall properties.

Features

· Easy to process on rollers. It does not stick to the rollers and has moderate plasticity.
· Smooth extrusion with a clean and uniform surface.

Applications

Used for extruding insulation layers and sheath layers for wires.
Suitable for high-voltage and low-voltage automotive cables, marine cables, and other special cables. It meets LV112, LV216, ISO6722, QC/T1037, and temperature grades of 150°C, 180°C, and 200°C.

1. Material Advantages

Extruded silicone cable material is built for harsh environments. Silicone rubber provides key advantages such as:

High-temperature resistance
Low-temperature flexibility
Chemical resistance
Weather resistance
Strong electrical insulation

These properties make it suitable for cable insulation and sheaths used in high-heat, extreme-climate, or chemically demanding environments.

2. Production Process

The production process includes several main steps:

Raw material preparation
Mixing
Extrusion – silicone rubber is heated, softened, and pushed through a die to form the insulation or sheath layer.
Primary vulcanization – stabilizes the material’s physical and chemical properties.

3. Secondary Vulcanization

After extrusion and primary vulcanization, the material goes through secondary vulcanization. This step:

Removes by-products created during the first vulcanization
Improves stability and reliability
Is usually done in an oven with controlled temperature and time

4. Industry Use and Value

Thanks to its strong performance, extruded silicone cable material is widely used in the wire and cable industry. Continuous optimization of processing and manufacturing helps improve durability and overall quality, ensuring the material meets the needs of tough and specialized applications.

Product Parameters

Project	Basic Indicators		Unit
Types	Extruded Vapor Phase Silicone	Extruded Precipitated Silicone	Unit
Appearance	High clarity	Milky-white	\
Plasticity	260±30	160±30	\
Hardness	67±3	60±3	Shore A
Density	1.20±0.03	1.16±0.03	g/cm3
Tensile Strength	9	7	(Mpa)≥
Elongation at Breakage	400	350	(%)≥
Tear Strengt	22	15	(N/mm)≥
Volume Resistivity	10^15	10^13	(Ω•cm)≥
Breakdown Strength	22	18	(kV/mm)≥
Operating Temperature	-50～200	-50～200	℃
