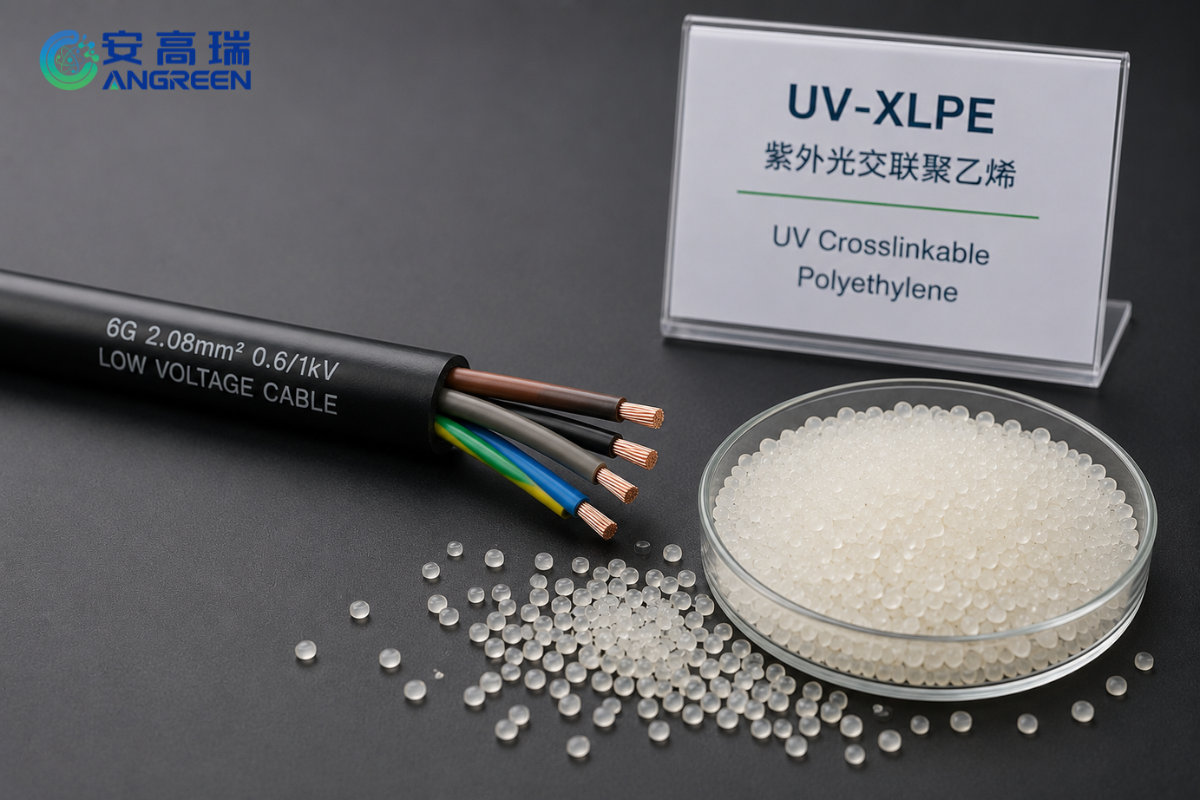

UV-XLPE UV-crosslinked polyethylene Compound

UV-Crosslinkable Polyethylene Cable Compound（UV-XLPE）achieves a crosslinked state upon irradiation by LED UV crosslinking equipment while in the molten state, fully complying with the JB/T10437-2004 standard. It is suitable for manufacturing insulation layers for power cables and electrical wiring, meeting standards such as JB/T10437, IEC60332, and IEC60754.

Brand number	PFXBS02-UV	Category	XLPE
Temperature rating	105℃	Color	Full color range
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke emission, long-term aging resistance, easy processability, wear resistance, and compliance with ROHS and REACH requirements.
Application Scope	Suitable for insulating materials.

Technical Specifications

Physical Properties
Property	Requirement	Typical value	Unit	Test method
Density	0.98±0.03	0.98	g/cm3	GB/T 1033
Hardness at 15"	96±3	96	Shore A	GB/T 2411
Tensile Strength	≥ 10	18.5	MPa	GB/T 1040
Elongation at Break	≥500	650	%	GB/T 1040
Volume Resistivity20℃ (Alternating Polarity Method)	≥ 1*10^13	1.5*10^13	Ω .m	GB/T 1040
Dielectric strength	≥20	40	MV/m	GB/T 1408
Impact brittlement temperature（-70 ºC)	≤ 15/30	0/30	PCS	GB/T 5470
Thermal prolongation	0.2MPa200℃ 15min			/
Elongation Under Load	≤ 175	60	%	GB/T 2951.21
Pemanent Defomation	≤ 15		%	GB/T 2951.21
Thermal aging experiment	135±2℃* 168 h			/
Change rate of tensile strengt	≤±30	12	%	GB/T 2951.12
Change rate of elongation at break	≤±30	-10	%	GB/T 2951.12
Irradiation dose	8-12MRad			/
Halogen-Free Properties
Property	Requiremen	Typical value	Unit	Test method
HCl and HBr gas releases	≤2	0	mg/g	GB/T 17650
PH	≥4.3	5.8	/	GB/T 17650
Conductivity	≤ 10	1	μs/mm	GB/T 17650
