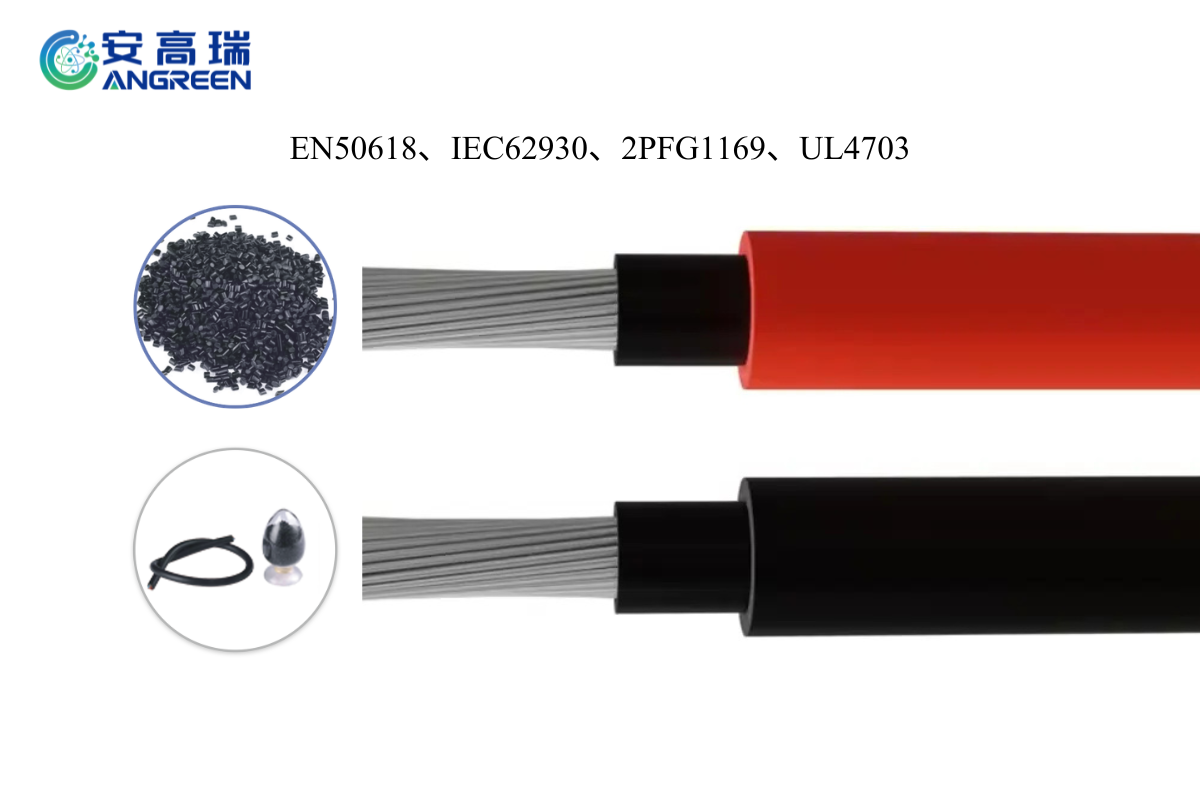

E-Beam XLPO Compound Solar PV Cable Insulation\Jacket

ANGREEN irradiated XLPO materials for photovoltaic cables are available in various specifications and are suitable for producing cable sheaths and insulation layers. These materials comply with multiple standards—including EN 50618, IEC 52930, 2PFG 1169, and UL 4703—and hold TÜV certification.

125° Solar PV Cable Insulation XLPO Compound	PFXBS95548	2PFG1169、EN50618
125° Solar PV Cable Jacket XLPO Compound	PFXBS95866	2PFG1169、EN50618
125° Solar PV Cable Insulation XLPO Compound	PFXBK95596	2PFG1169
125° Solar PV Cable Jacket XLPO Compound	PFXBK95597	2PFG1169
90° Solar PV Cable Insulation XLPO Compound（AD8）	PFXBK95591	EN50618、IEC62930、2PFG2750=AD8
90° Solar PV Cable Jacket XLPO Compound（AD8）	PFXBK95592	EN50618、IEC62930、2PFG2750=AD8
105° Solar PV Cable Insulation XLPO Compound	PFXBK95549	EN50618、UL4703
105° Solar PV Cable Jacket XLPO Compound	PFXBK95550	EN50618、UL4703

Technical Specifications

(Taking 125°C E-Beam XLPO as an example, Please contact us for other specifications.)

Brand number	PFXBK95866（Jacket）	Category	XLPO
	PFXBK95548（Insulation）
Temperature rating	125℃	Color	Black
Crosslinking method	Irradiation cross linking（E-Beam）
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke emission, long-term aging resistance, easy processability, wear resistance, and compliance with ROHS and REACH requirements.
Application Scope	EN50618，2PFG1169.

Technical characteristics
Physical Properties		PFXBK95866	PFXBK95548
Property	Requirement	Typical value	Typical value	Unit	Test method
Density	1.5±0.05	1.47	1.3	g/cm3	GB/T 1033
Hardness at 15"	95±3	95	95	Shore A	GB/T 2411
Tensile strength before irradiation	≥5	6	9.3	Mpa	GB/T 1040
Elongation at break before irradiation	≥ 150	183	205	%	GB/T 1040
Tensile strength before aging	≥8	11.2	11.8	Mpa	GB/T 1040
Elongation at break before aging	≥ 120	160	176	%	GB/T 1040
Thermal elongation 0.2MPa×200℃×15min
Elongation under load	≤ 100	30	30	%	GB/T 2951
Permanent deformation	≤25	0	0	%	GB/T 2951
Aging performance 150℃×168h
Change rate of tensile strength	≤-30	-21	-20	%	GB/T2951.12
Change rate of elongation at break	≤-30	-23	-25	%	GB/T2951.12
Impact brittlement temperature(-40 ºC)	≤ 15/30	0/30	0/30	PCS	GB/T 5470
Volume Resistivity(20℃)	≥ 1*10^12	2.2*10^12	2.5* 10^15	Ω .m	GB/T 1410
Dielectric strength	≥ 18	20	30	MV/m	DIN EN 6024
Irradiation Dose	16-20			Mrad	/
Flame Retardant Properties
Property	Requirement	Typical value		Unit	Test method
LOI	≥28	30	\	%	GB/T2406
Halogen-Free Properties
Property	Requirement	Typical value	Typical value	Unit	Test method
Halogen gas content	≤0.5	0.1	0.1	mg/g	IEC60754
PH	≥4.3	5.8	5.6	/	IEC60754
Electrical conductivity	≤ 10	2	7	us/mm	IEC60754
