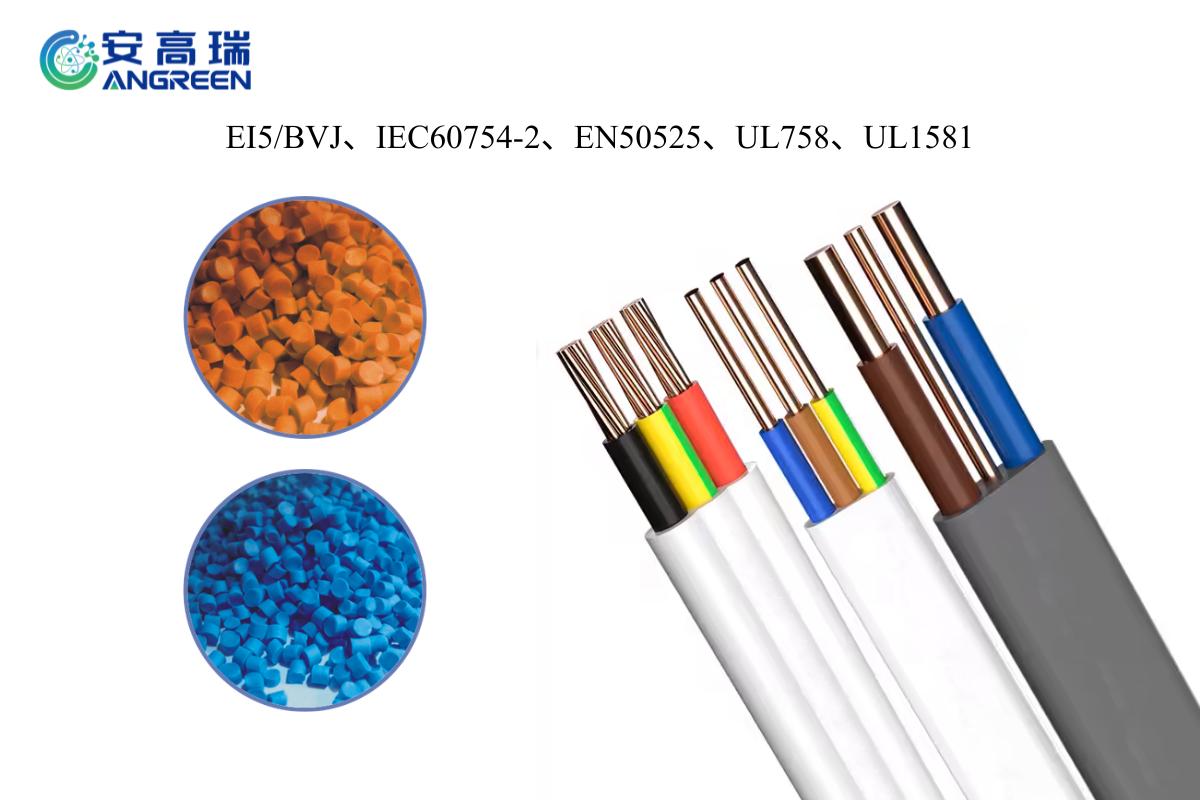

IEC60332-3-22 E-Beam-XLPO For Electrical Wiring Wire

Irradiation-crosslinked XLPO materials are suitable for manufacturing various types of electrical wiring for buildings—such as BVJ and EI5 types—in compliance with international standards like IEC 60754-2 and EN 50525. They feature high flame retardancy, meeting the Category A flame retardant requirements of IEC 60332-3-22.

Brand number	PFXBS95481	Category	XLPE
Temperature rating	105℃	Color	Full color range
Crosslinking method	Irradiation cross linking
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke emission, long-term aging resistance, easy processability, wear resistance, and compliance with ROHS and REACH requirements.
Application Scope	Building wires, etc.

Technical Characteristics
Physical Properties
Property	Requirement	Typical value	Unit	Test method
Density	1.5~ 1.6	1.52	g/cm3	GB/T 1033
Hardness at 15"	95±3	95	Shore A	GB/T 2411
low temperature embrittlement temperature (-35°C)	≤ 15/30	0/30	个/PCS	GB/T 5470
Tensile strength before crosslinking	≥ 10	11.8	MPa	GB/T 1040
Elongation at break before crosslinking	≥ 180	213	%	GB/T 1040
Tensile strength before aging	≥ 10	12.7	MPa	GB/T 1040
Elongation at break before aging	≥ 140	190	%	GB/T 1040
Thermal prolongation	0.2MPa200℃ 15min			/
Elongation Under Load	≤ 100	28	%	GB/T 2951.21
Pemanent Defomation	≤ 15	3	%	GB/T 2951.21
Air thermal aging experiment	158℃* 168 h			/
Change rate of tensile strengt	≤±30	10	%	GB/T 2951.12
Change rate of elongation at break	≤±30	-22	%	GB/T 2951.12
Flame Retardant Properties
Property	Requirement	Typical value	Unit	Test method
Oxygen index	≥32	38	%	GB/T 2406
Class A flame retardant in bundles	Meet	Meet	/	IEC 60332-3-22
Chemical Resistance/电性能
Volume Resistivity at 20℃	≥ 1.0*10^13	5.1*10^13	Ω .cm	GB/T 1410
Dielectric strength	≥20	25	MV/m	DIN EN 6024
Halogen-Free Properties
Property	Requirement	Typical value	Unit	Test method
Amount of halogen acid gas	≤0.5	0	mg/g	GB/T 17650
PH	≥4.3	5.6	/	GB/T 17650
Conductivity	≤ 10	6.2	μs/mm	GB/T 17650
