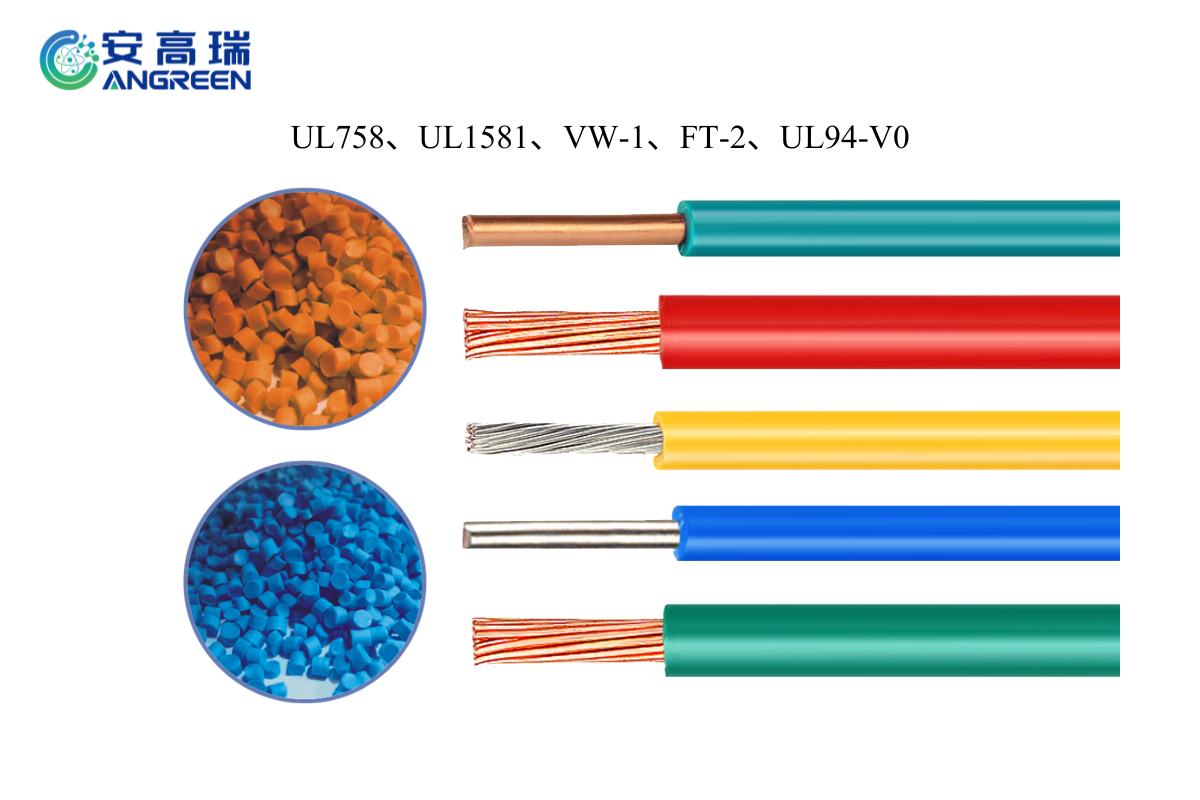

UL AWM Styles Electrical Wire E-Beam XLPO Compound

This series of materials meets all requirements of the UL 758 AWM standard. They are suitable for manufacturing internal wiring for household appliances and electronic equipment, as well as internal circuit connections, power transmission lines, and signal control lines for various types of equipment. They comply with ANSI/UL 758 and CEC Part II standards. The range includes XLPO materials with temperature ratings of 105°C, 125°C, and 150°C. Options include low-halogen, halogen-free, and decabromodiphenylethane-free XLPO materials. Flame retardancy meets VW-1 or FT-2 ratings.

ANGREEN XLPO Material Product Categories for UL Electronic Wires

Product		Part Number	Type
UL Electrical Wire XLPO COmpound	UL Electrical Wire 105℃ VW-1 XLPO	PFXBS95530	VW-1，HF，UL758\1581
	UL Electrical Wire 105℃ FT-2 XLPO	PFXBS95415	FT-2，HF，UL758\1581
	UL Electrical Wire 125℃ FT-2 XLPO	PFXBS95503	Small Size，FT-2，HF，UL758\1581
	UL Electrical Wire 125℃ FT-2 XLPO	PFXBS955180	Large-Size，FT-2，HF，UL758\1581
	UL Electrical Wire 150℃ FT-2 XLPO	PFXBS95663	Small Size，FT-2，HF，UL758\1581
	UL Electrical Wire 150℃ FT-2 XLPO	PFXBS956007	Large-Size，FT-2，HF，UL758\1581
	UL Electrical Wire 125℃ VW-1 XLPO	PFXBS95505	Small Size, VW-1，LH，UL758\1581
	UL Electrical Wire 125℃ VW-1 XLPO	PFXBS95567	Large-Size, VW-1，LH，UL758\1581
	UL Electrical Wire 150℃ VW-1 XLPO	PFXBS95601	Small Size, VW-1，LH，UL758\1581
	UL Electrical Wire 150℃ VW-1 XLPO	PFXBS95615	Large-Size, VW-1，LH，UL758\1581
	Not DBDPE 125℃ XLPO	\	LH、Not DBDPE，UL758\1581
	Not DBDPE 150℃ XLPO	\	LH、Not DBDPE，UL758\1581
	UL Electrical Wire 125°VW-1 XLPO	PFXBS93561	HF，VW-1，UL758\1581
HF=Halogen-Free LH=Halogen-Containing, Low-Halogen Not DBDPE=Does not contain decabromodiphenylethane.

Technical Specifications

(Based on 150°C FT-2 XLPO Large Size; please contact us for other specifications.)

Brand number	PFXBS956007	Category	XLPE/PO
Temperature rating	150℃	Color	Full color range
Crosslinking method	Irradiation cross linking
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke , easy tp process, in compliance with ROHS and REACH requirements.
Application Scope	UL1581, UL758 ，Wire large size wire.

Technical Characteristics
Physical Properties
Property	Requirement	Typical value	Unit	Test Method
Density	≤ 1.3	1.25	g/cm3	GB/T 1033
Hardness at 15"	95±3	95	Shore A	GB/T 2411
Tensile strength	≥ 13.79	14.5	MPa	GB/T 1040
Elongation at break	≥300	450	%	GB/T 1040
Elongation Under Load	≤ 175	30	%	GB/T2951.21
Pemanent Defomation	≤ 15	1	%	GB/T2951.21
Aged-7day@180℃ TS	≥80	96	%	UL1581
Aged-7day@180℃ EB/	≥80	88	%	UL1581
Volume Resistivity at 20℃	≥ 1.0*10^13	4.1*10^13	Ω .cm	GB/T 1410
Low temperature brittleness(-40℃)	≦ 15/30	0	Number of failures	GB/T5470
Flame Retardant Properties
Property	Requirement	Typical Value	Unit	Test Method
Horizontal Burning 3mm	HB	HB	/	UL94
Flame Class Rating	FT2	FT2	/	UL1581
Halogen-Free Properties/HF
Property	Requirement	Typical Value	Unit	Test method
Halogen gas content	≤5	0	mg/g	GB/T 17650.1
PH Value	≥4.3	6.1	/	GB/T 17650.2
Conductivity	≤ 10	2.1	us/mm	GB/T 17650.2
