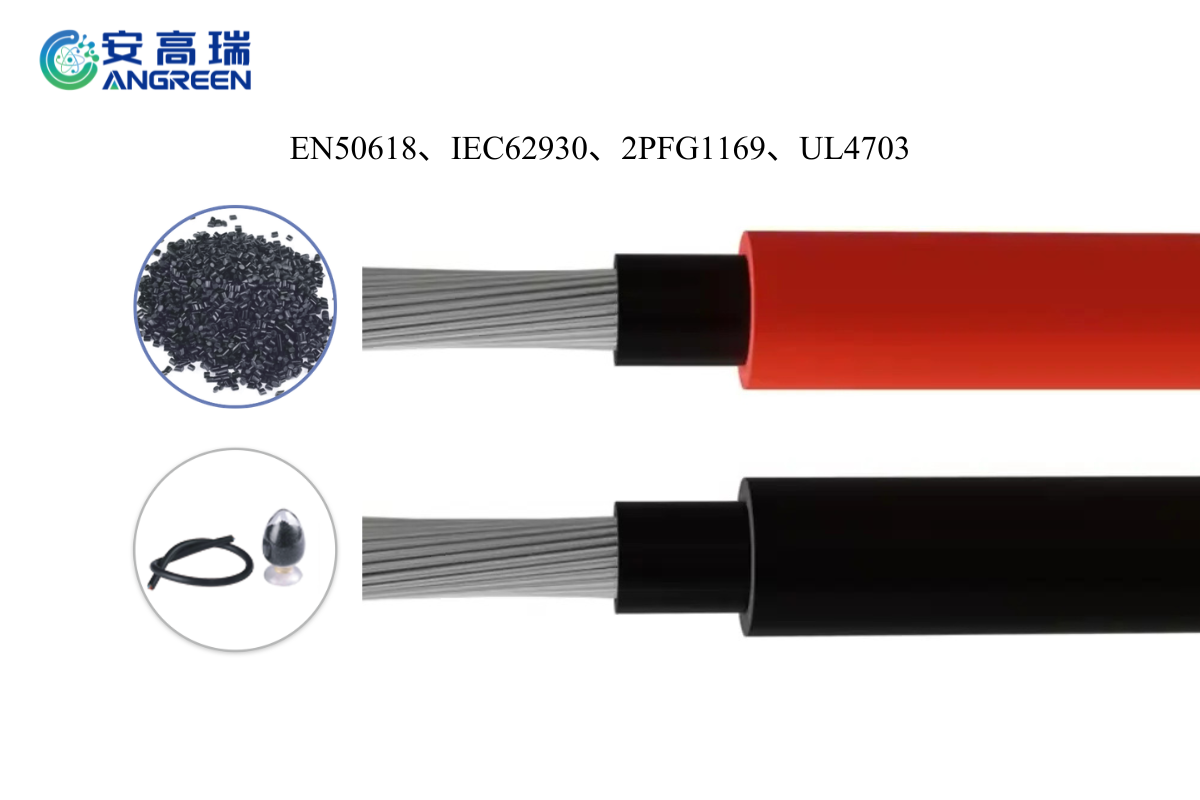

Silane XLPO Compound Solar PV Cable Insulation\Jacket

ANGREEN silane-crosslinkable XLPO material for photovoltaic cables is suitable for producing both the sheath and insulation layers. It complies with multiple standards—including EN 50618, IEC 52930, 2PFG 1169, and holds TÜV certification.

Technical Specifications

Brand number	GW-GF-01（Insulation） GW-GF-02（Jacket）	Category	XLPO
Temperature rating	125℃	Color	Natural White
Crosslinking method	Silane cross-linked
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke emission, long-term aging resistance, easy processability, wear resistance, and compliance with ROHS and REACH requirements.
Application Scope	2PFG1169,EN50618,IEC62930.
GW-GF-01	Material A: GW-GF-01\02(A), Material B: GW-GF-01\02(B), mix the two evenly in a 90/10 ratio.

Technical characteristics
Physical Properties		GW-GF-01	GW-GF-02
Property	Requirement	Typical Value	Typical Value	Unit	Test Method
Density	Insulation 0.95-1.1 Jacket 1.45-1.55	1.0	1.48	g/cm3	ISO 1183
Hardness at 15"	95±3	95	95	Shore A	ISO 868
Tensile Strength	≥8	12	12	Mpa	ISO 527
Elongation at break	≥ 125	200	180	%	ISO 527
Thermal elongation，0.2MPa×250℃×15min
Elongation under load	≤ 100	30-40	30-40	%	GB/T 2951
Permanent deformation	≤25	0	0	%	GB/T 2951
Aging performance，150℃×168h
Change rate of tensile strength	≤-30	+12	+10	%	GB/T2951.12
Change rate of elongation at break	≤-30	-10	-20	%	GB/T2951.12
Impact brittlement temperature（-40 ºC)	≤ 15/30	0/30	0/30	PCS	GB/T 5470
Volume Resistivity20℃ (Alternating Polarity Method)	Insulation≥ 110^15 Jacket≥ 1 10^14	2.9*10^15	2.0*10^14	Ω .cm	ASTM D257
Dielectric strength	≥20	28	24	MV/m	DIN EN 6024
Flame Retardant Properties
LOI	Jacket≥30	\	37	%	GB/T2406
Smoke density (flamed)	Ds max	\	90	/	GB/T8627
Halogen-Free Properties
Property	Requirement	Typical Value		Unit	Test method
Halogen gas content	≤5.0	0	0	mg/g	IEC60754-2
PH	≥4.3	5	5.8	/	IEC60754-2
Electrical conductivity	≤ 10	1	3.4	us/mm	IEC60754-2
Extrusion Process Parameters
Mixing: Before using the product, mix the A and B components evenly according to A:B=90:10 and add them to the hopper, after the material is opened, it is recommended to use it up within 2 hours, and it is forbidden to dry the material, and the A and B components are strictly prevented from being brought in by external moisture during the mixing process.
Screw	It is recommended to use a single threaded screw with equal distance and unequal depth, compression ratio: 1.5±0.3
