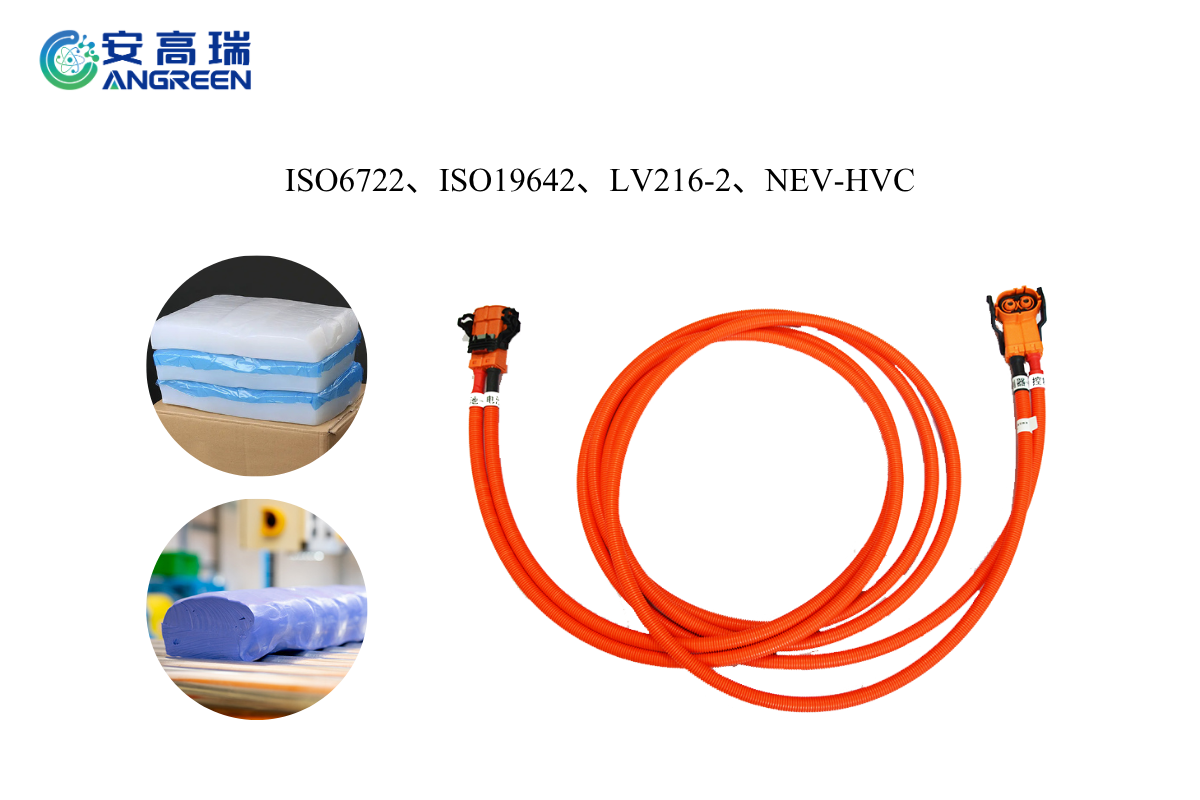

Silicone Rubber For New Energy Vehicle cables

The silicone materials used for new energy vehicle cables are primarily based on fumed silicone rubber. These products comply with standards such as ISO 19642, ISO 6722, and LV 216-2 regarding silicone materials for new energy vehicle wiring harnesses. They are suitable for manufacturing the sheath layers of high-voltage cables for new energy vehicles.

Gas Phase Mixed Silicone Gel for NEV High Voltage Cable
Brand Number	\	Category	Silicone Rubber
Temperature Rating	180℃\190℃\200℃	Color	Transparent or white
Crosslinking Method	\
Appearance	Solid block	Processing Method	Extrusion
High-voltage cable sheathing for new energy vehicles. The product meets the requirements for silicone materials used in new energy vehicle wiring harnesses, such as ISO 19642, ISO 6722, and LV 216-2.

PROPERTIES	Typical value			UNIT	Method
PROPERTIES	180℃ PHQNC65-1E	190℃ PHQNC60-2E	200℃ PHQNC60-3E	UNIT	Method
PHYSICAL PROPERTIES（Before aging）
Color	Transparent or white			—	—
VOC	1-2 Class	1-2 Class	1-2 Class	—	—
Hardness,Shore A	65	59	58-65	Shore A	GB/T 531.1
Density	1.19	1.17	1.183	g/cm^3	GB/T 533
Tensile Strength	10.3	10.3	9.5	MPa	GB/T 528
Tensile Elongation@break	632	736	662	%	GB/T 528
Tear Strength	52	48.6	49	kN/m	GB/T 529
Oxygen Index	28	27	27	—	GB/T 10707
SHORT TERM THERMAL AGING (205℃, 240h)
Tensile Strength	8.1	6.3	6.5	MPa	GB/T 528
Tensile Elongation@break	386	354	262	%	GB/T 528
WIRE LONG TERM THERMAL AGING (180℃,3000h)
Winding Test	No Cracking	No Cracking	No Cracking	—	ISO 19642
Withstand Voltage	No Breakdown	No Breakdown	No Nreakdown	—	ISO 19642
ELECTRICAL PROPERTIES
Volume Resistivity	1.7×10^16	2.9×10^16	7.8×10^15	Ω·cm	GB/T 1692
Breakdown strength	28	29	25	kV/mm	GB/T 1695
Dissipation Factor(1kHz)	0.001	0.001	0.001	—	ASTM D150
Dielectric Constant(1kHz)	2.7	2.8	2.8	—	ASTM D150
