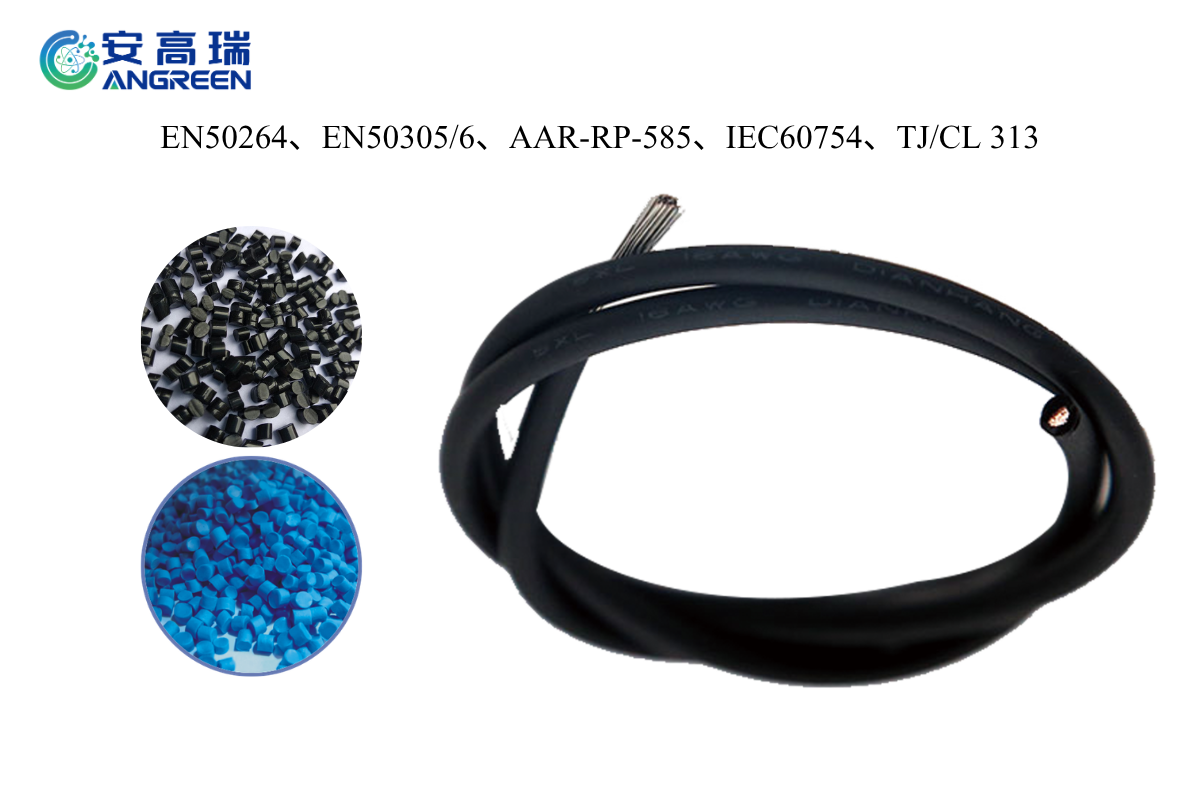

EN50264 Rail Transit Vehicle Cable E-Beam irradiated XLPO Compound

ANGREEN series of cable materials for rail vehicles is suitable for manufacturing internal wiring (such as high-voltage cables and thin-walled conductors) that complies with the EN 50264 standard. This product range offers diverse specifications, meets the requirements of standards such as EN 50306 and EN 45545, and features properties including halogen-free flame retardancy and oil resistance.

XLPO for Rail Transit Vehicle Cable	PFXBK92518	EN50264-2-1
XLPO for Rail Transit Vehicle Cable	PFXBK92518ZT	EN50264-3-1
XLPO for Rail Transit Vehicle Thin Wall Cable	PFXBS97552	EN50306
XLPO for Rail Transit Vehicle Cable Jacket	PFXBK92518H	EN50264
XLPO for Rail Transit Vehicle Cable Jacket	PFXBK92518DX	EN50264，Can be used for rolling stock Ethernet cables.

Technical Specifications

(Taking XLPO-92518 cable for rail transit vehicles (small size) as an example; please contact us for other specifications.)

Brand number	PFXBK92518	Category	XLPE
Temperature rating	125℃	Color	Black
Crosslinking method	Irradiation cross linking
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke,flame-retardant, heat-resistant, oil-resistant, easy to process, and free from precipitation pollution,and compliance with ROHS and REACH requirements.
Application Scope	EN50264.

Technical characteristics
Physical Properties
Property	Requirement	Typical value	Unit	Test Method
Density	1.48±0.03	1.45	g/cm3	GB/T 1033
Hardness at 15"	94±3	93	Shore A	GB/T 2411
low temperature embrittlement temperature (-40°C)	≤ 15/30	0/30	PCS	GB/T 5470
Tensile strength	≥ 10	13.2	MPa	GB/T 1040
Elongation at break	≥ 150	170	%	GB/T 1040
Thermal prolongation	0.2MPa200℃ 15min			/
Elongation Under Load	≤ 100	50	%	GB/T 2951
Pemanent Defomation	≤ 15	0	%	GB/T 2951
Aging performance	135℃* 168 h			/
Change rate of tensile strength	≤±30	12	%	GB/T 2951.12
Change rate of elongation at break	≤±30	-16	%	GB/T 2951.12
Volume Resistivity at 20℃	≥ 1.0*10^14	5.2*10^14	Ω .cm	GB/T 1410
Dielectric strength	≥20	25	MV/m	DIN EN 6024
902 # oil resistant(100°C*72h)
Change rate of tensile strength	≤±30	-19	%	GB/T 2951.12
Change rate of elongation at break	≤±40	-25	%	GB/T 2951.12
903 # oil resistant(70°C*168h)
Change rate of tensile strength	≤±30	-16	%	GB/T 2951.12
Change rate of elongation at break	≤±40	-28	%	GB/T 2951.12
Acid resistant/ (N-oxalic acid solution)
Change rate of tensile strength	≤30	-20	%	GB/T 2951.12
Elongation at break	≥ 100	132	%	GB/T 2951.12
Alkali resistant (N-sodium hydroxide solution)
Change rate of tensile strength	≤30	-19	%	GB/T 2951.12
Elongation at break	≥ 100	140	%	GB/T 2951.12
Irradiation dose	16-20		Mrad	/
Flame Retardant Properties
Property	Requirement	Typical value	Unit	Test method
Oxygen index	≥30	35	%	GB/T 2406
Halogen-Free Properties
Property	Requirement	Typical value	Unit	Test method
Amount of halogen acid gas produced	≤0.5	0.1	mg/g	IEC 60754
PH	≥4.3	5.6	/	IEC 60754
Conductivit	≤ 10	7	μs/mm	IEC 60754
