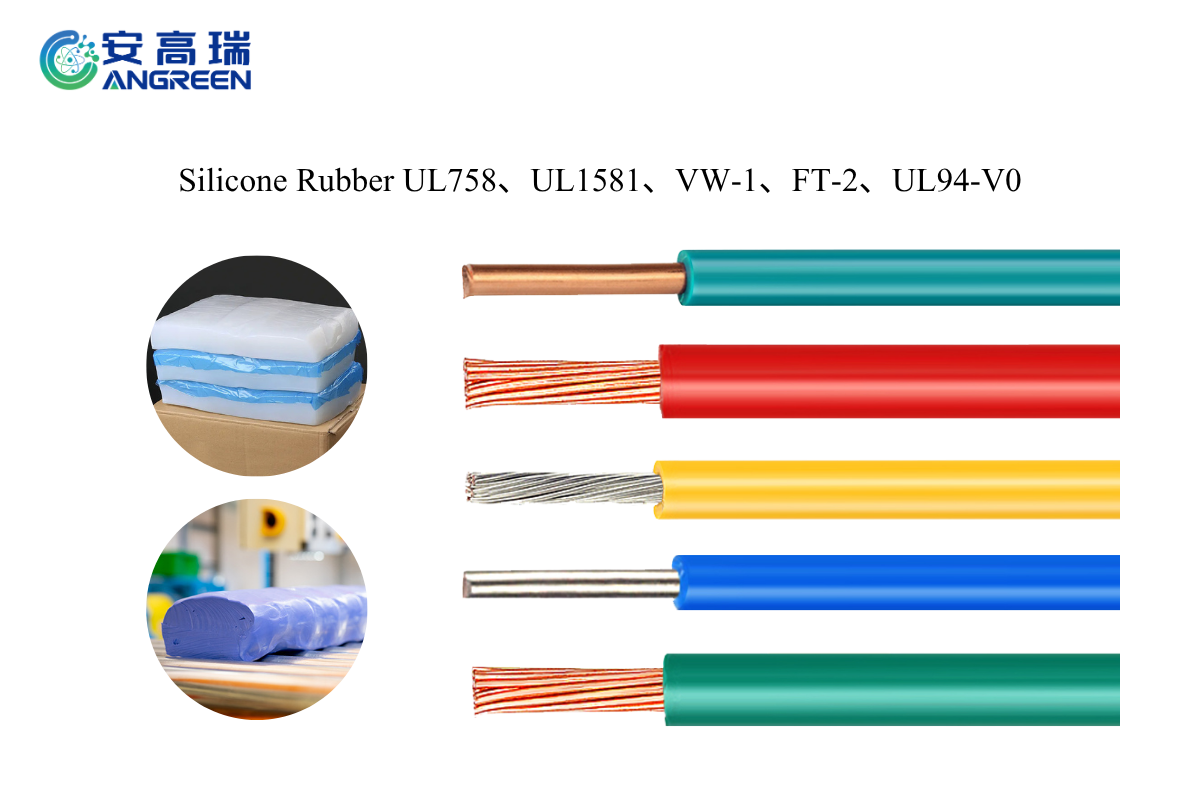

Silicone Rubber Fumed Compound for UL Electronic Wire

The Silicone Rubber used for UL electronic wires are primarily based on fumed silicone rubber compounds. They meet the aging requirements specified in UL1581 for 150℃/200℃ silicone rubber used in SA-type wire insulation, as well as the aging requirements for 150℃/200℃ silicone rubber used for jackets or insulation as outlined in Table 50.210 of UL1581.

These materials are suitable for manufacturing internal circuit connection wires for various household appliances and electronic equipment, as well as internal circuit connections, power transmission lines, and signal control lines for diverse types of equipment. The flame retardancy meets the FT-2 rating.

Fumed Silicon Rubber Compound for UL Electronic Wire
Brand Number	PHQNC65-1U（158℃） PHQNC60-2U（210℃）	Category	Silicone Rubber
Temperature Rating	158℃\210℃	Color	Transparent or white
Crosslinking Method	\
Appearance	块状Solid block	Processing Method	Extrusion
It meets the aging requirements for 150°C/200°C silicone rubber used for the insulation of Type SA wires as specified in UL1581, as well as the aging requirements for 150°C/200°C silicone rubber used for jackets or insulation as specified in Table 50.210 of UL1581.

PROPERTIES	VALUE	Typical value		UNIT	Method
		PHQNC65-1U	PHQNC60-2U
PHYSICAL PROPERTIES（Before aging）
Color	—	Transparent or white	Light yellow or white	—	—
Hardness	65±5	64	60	Shore A	GB/T 531.1
Plasticity	250±30	248	232	—	GB/T 12828
Density	1.20±0.03	1.19	1.18	g/cm^3	GB/T 533
Tensile Strength	≥8	9.7	8.6	MPa	GB/T 528
Tensile Elongation@break	≥400	624	585	%	GB/T 528
Tear Strength	≥25	46	48	kN/m	GB/T 529
Oxygen Index	≥26	27	27	—	GB/T 10707
Flammability	—	FT2		—	UL 1581
SHORT TERM THERMAL AGING (200℃, 240h)
Tensile Strength	≥6.5	7.1	7.2	MPa	ISO 19642
Tensile Elongation@break	≥240	359	331	%	ISO 19642
SHORT TERM THERMAL AGING (158℃, 1440h)
Tensile Strength	≥3.45	6.6	5.4	MPa	UL 1581
Tensile Strength Rentention Rate	≥60	68	63	%	UL 1581
Tensile Elongation@break	≥50	215	183	%	UL 1581
Tensile Elongation@break Rentention Rate	≥25	34.5	31	%	UL 1581
WIRE LONG TERM THERMAL AGING (180℃,3000h)
Winding Test	No cracking	No cracking	No cracking	—	ISO 19642
Withstand Voltage	No breakdown	No breakdown	No breakdown	—	ISO 19642
ELECTRICAL PROPERTIES
Volume Resistivity	≥10^15	5.7×10^15	1.9×10^16	Ω·cm	GB/T 1692
Breakdown strength	≥20	28	28	kV/mm	GB/T 1695
