$NHXMH CABLE\EN50620 E-Beam XLPE Insulation Compound$

NHXMH CABLE\EN50620 E-Beam XLPE Insulation Compound

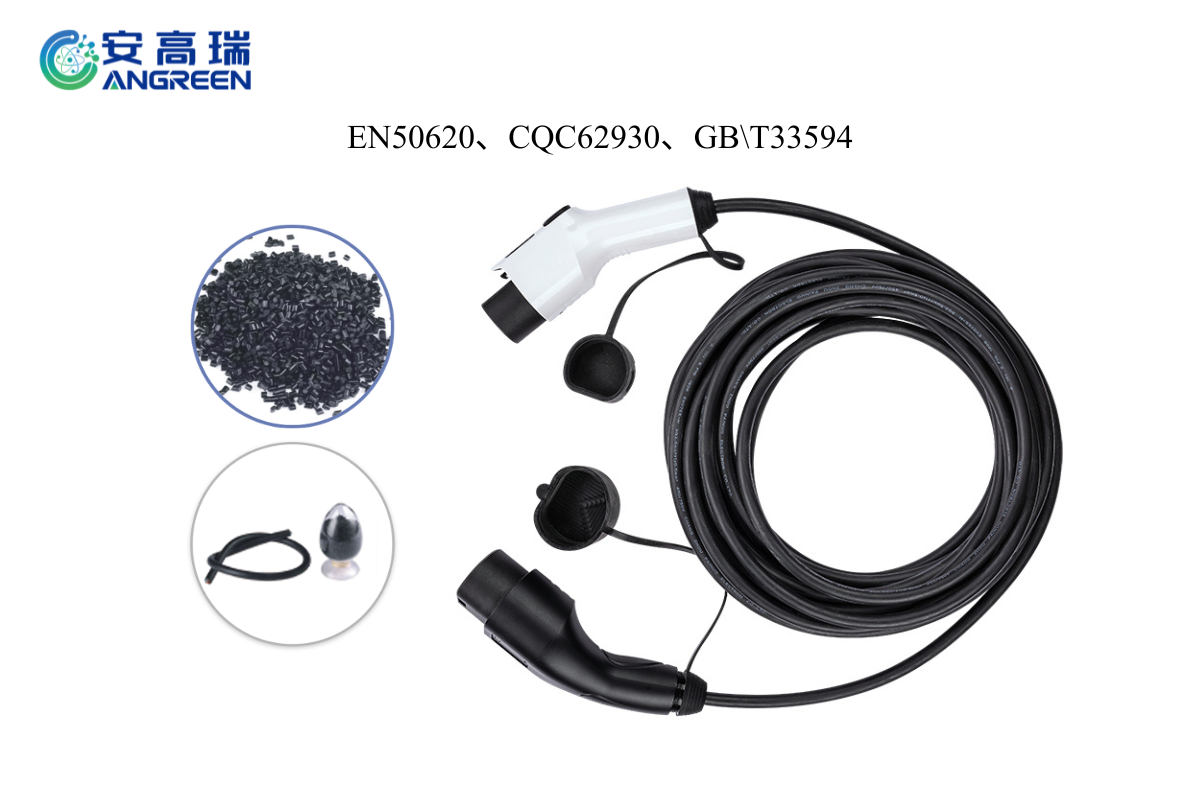

Irradiation-crosslinked XLPE insulation material features halogen-free, low-smoke, and long-term aging resistance properties. It is easy to process, free from exudation or contamination, and compliant with RoHS and REACH requirements. It meets the relevant standards of GB/T 33594 and EN 50620. It is suitable for manufacturing insulation layers for charging pile cables and NHXMH-type low-voltage cables.

Brand number	PFXBS92431	Category	XLPE
Temperature rating	105℃	Color	Full Color Range
Crosslinking method	Irradiation cross linking
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke emission, long-term aging resistance, easy processability, no precipitation pollution, and compliance with ROHS and REACH requirements.
Application Scope	GB/T33594、EN50620-2017,NHXMH.

Technical Characteristics
Physical Properties
Property	Requirement	Typical value	Unit	Test method
Density	≤ 1.2	1.1	g/cm3	GB/T 1033
Hardness at 15"	91±3	92	Shore A	GB/T 2411
Impact brittlement temperature（-40 ºC)	≤ 15/30	0/30	PCS	GB/T 5470
Tensile strength before irradiation	≥8	14	Mpa	GB/T 1040
Elongation at break before irradiation	≥300	550	%	GB/T 1040
Tensile strength before aging	≥ 10	19.2	Mpa	GB/T 1040
Elongation at break before aging	≥200	320	%	GB/T 1040
Thermal elongation，0.2MPa×200℃×15min
Elongation under load	≤ 100	35	%	GB/T 2951
Permanent deformation	≤25	0	%	GB/T 2951
Aging performance，135℃×168h
Change rate of tensile strength	≤±30	8	%	GB/T2951
Change rate of elongation at break	≤±30	-14	%	GB/T2951
Volume Resistivity20℃(Alternating Polarity Method)	≥ 1*10^15	3.2*10^15	Ω .cm	GB/T 1410
Irradiation Dose	16-20		Mrad	/
Halogen-Free Properties
Property	Requirement	Typical Value	Unit	Test Method
Halogen gas content	≤0.5	0.1	mg/g	IEC60754
PH	≥4.3	5.6	/	IEC60754
Electrical Conductivity	≤ 10	7	us/mm	IEC60754
