XLPO for Automotive High-Voltage Cable/Thin-Wall Cable

XLPO for NEV \ Automotive High-Voltage Cable / Thin-Wall Cable

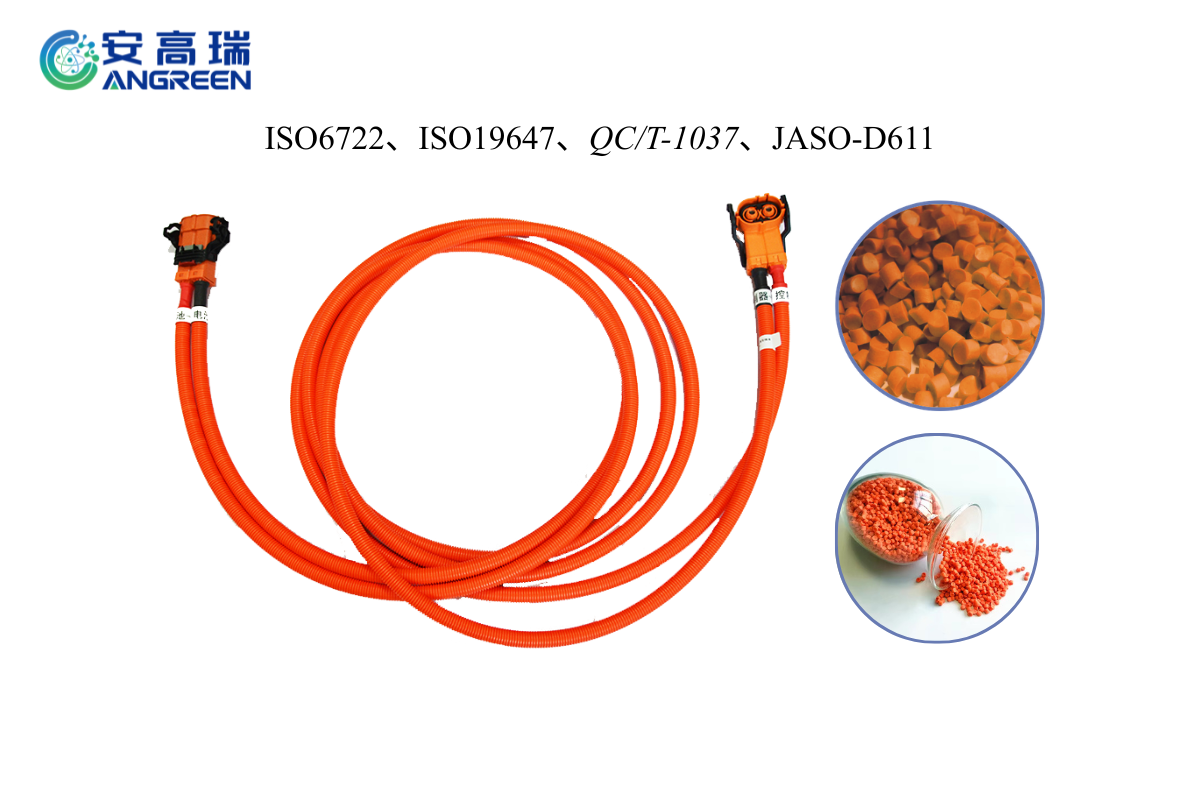

These automotive cable materials are suitable for manufacturing automotive high-voltage cables and thin-wall cables ranging from 0.35mm² to 120mm². ANGREEN XLPO materials for automotive cables are available in two temperature ratings—T3 (125°C) and T4 (150°C)—and comply with standards such as ISO 6722, ISO 19642, JASO D 611, DIN 72551, and GB/T 25085. They withstand 3,000 hours of long-term thermal aging and 240 hours of short-term thermal aging. Voltage ratings meet 600 V AC/1,000 V DC and 1,000 V AC/1,500 V DC requirements.

Application Areas	Product Description	Part Number	Specification
NEV\Automotive Wiring Harness	T3-NEV HV Cable XLPE-Thin Wall	PFXBS61D5084	0.35-7mm^2
	T3-NEV LV Cable XLPE-Thin Wall	PFXBS59D5137	1-4mm^2
	T3-NEV LV Cable XLPE-Think Wall	PFXBS905138	10-25mm^2
	T3-NEV HV Cable XLPE-Think Wall	PFXBS875053	25-120mm^2
	T3-NEV HV Cable XLPE-Thin Wall	PFXBS92530	10-25mm^2
	T3-NEV HV Cable XLPE-Think Wall	PFXBS95529	8-35mm^2
	T3-NEV HV Cable XLPE-Think Wall	PFXBS46D5101	6-10mm^2
	T4-NEV HV Cable XLPE-Thin Wall	PFXBS55D6017	0.35-1mm^2
	T4-NEV HV Cable XLPE-Thin Wall	PFXBS57D692	1-6mm^2
	T4-NEV HV Cable XLPE-Think Wall	PFXBS92660	8-35mm^2
	T4-NEV LV Cable XLPE-Think Wall	PFXBS906019	10-25mm^2
	T4-NEV HV Cable XLPE-Think Wall	PFXBS886008	25-120mm^2
	T3 NEV HV Cable XLPO	PFXOR805057	25-120mm^2

Product Parameters

(Taking XLPO material for automotive high-voltage cables as an example (due to the large number of specifications of automotive wiring harness materials, please consult the company for other specifications).

150°C Irradiation Cross-linked Halogen-free Flame Retardant Polyolefinfor Automotive Wire（E-Beam）
Brand number		PFXBS92660	Category	XLPE
Temperature rating		150℃	Color	Full color range
Application Scope	ISO 6722, ISO 19642, QC/T 1037, etc. Wire Gauge: 8-35 mm²

Technical characteristics
Physical Properties
Property	Requirement	Typical value	Unit	Test method
Density	≤ 1.5	1.44	g/cm3	ISO 1183
Hardness at 15'	95±3	95	Shore A	ISO 868
Tensile Strength	≥ 10	12.5	MPa	ISO527
Elongation at Break	≥200	239	%	ISO527
Volume Resistivity20℃	≥ 1*10^12	4.2*10^12	\	ASTM D257
Dielectric strength(20℃)	≥20	25	MV/m	GB/T 1408.1
Impact brittlement temperature（-40 ºC)	≤ 15/30	0/30	PCS	GB/T 5470
Thermal prolongation	0.2MPa200±3℃ 15min			/
Elongation Under Load	≤ 100	30-70	%	GB/T2951.21
Pemanent Defomation	≤ 15	2	%	GB/T2951.21
Thermal aging experiment	175±2℃*240 h			/
Change rate of tensile strength	≤±30	15	%	GB/T2951.12
Change rate of elongation at break	≤±30	-14	%	GB/T2951.12
Winding	Not broken/	Not broken/	/	ISO6722
Withstand voltage	Not broken	Not broken	/	ISO6722
Thermal aging experiment	150±2℃*3000h			/
Winding	Not broken	Not broken	/	ISO6722
Withstand voltage	Not broken	Not broken	/	ISO6722
Chemical Resistance
Gasoline resistance (ISO1817C, 23℃, 20h)
Rate of change of outer diameter	≤ 15	12.6	%	ISO14572
Diesel resistance (90%ISO1817 3# oil + 10% paraxylene, 23℃ 20h)
Rate of change of outer diameter	≤ 15	2.5	%	ISO14572
Engine oil resistance(ISO1817 2# oil, 50℃, 20h)
Rate of change of outer diameter	≤ 15	3.4	%	ISO14572
Flame retardant	The flame is extinguished within 30s, and at least 50mm of the end ofthe specimen			ISO19642
Heat and water resistance	Insulation volume, AC 1000V/DV 1500V,immersed in 85±5℃ water for 35 days Resistivity > 10^12Ω/mm			ISO19642
Ozone resistant(65±3℃)	65℃/192hr, no crack			ISO19642
Temperature and humidity cycling(-25±2℃)	AC 1000V/DV 1500V, 40× 8-hour cycle, -40℃ to 150℃, relative humidity 80 to 100%, withstand voltage 3kV for 1 minute, no cracks			ISO19642
Low-temperature winding(-40±2℃)	AC 1000V/DV 1500V,3kV/4hr,not broken			ISO19642
Cold shock(-15±2℃)	AC 1000V/DV 1500V,3kV/16hr,not broken			ISO19642
Heat shrink(150±3℃)	The sample was taken out after being placed at 150℃ for 15 minutes.Measure the length of the insulator and the cable after cooling to room temperature The shrinkage at either end of the insulating layer < 2mm			ISO19642
Heat load	AC 1000V/DV 1500V, the sample is placed at 200±3℃ for 6 hours, then taken out and bent at room temperature without cracking.Withstand voltage of 3kV for 1 min,not broken.			ISO19642
High temperature and pressure	The sample is hung at 150℃ under the specified load.After 4 hours, immerse in cold water for 10 seconds and withstand a voltage of 1kV/ 1min,not broken			ISO19642

Screw			Recommended Halogen-Free screw with a compression ratio of 1.1-1.7
Filter Screen			Filter selection recommended 60 + 80 + 60 mesh combined filter
Typical temperature setting of the extruder
CZ1	CZ2	CZ3		CZ4	CZ5	FZ1	HZ1	HZ2	HZ3
140±10	160±10	170±10		180±10	180±10	180±10	180±10	180±10	180±10
