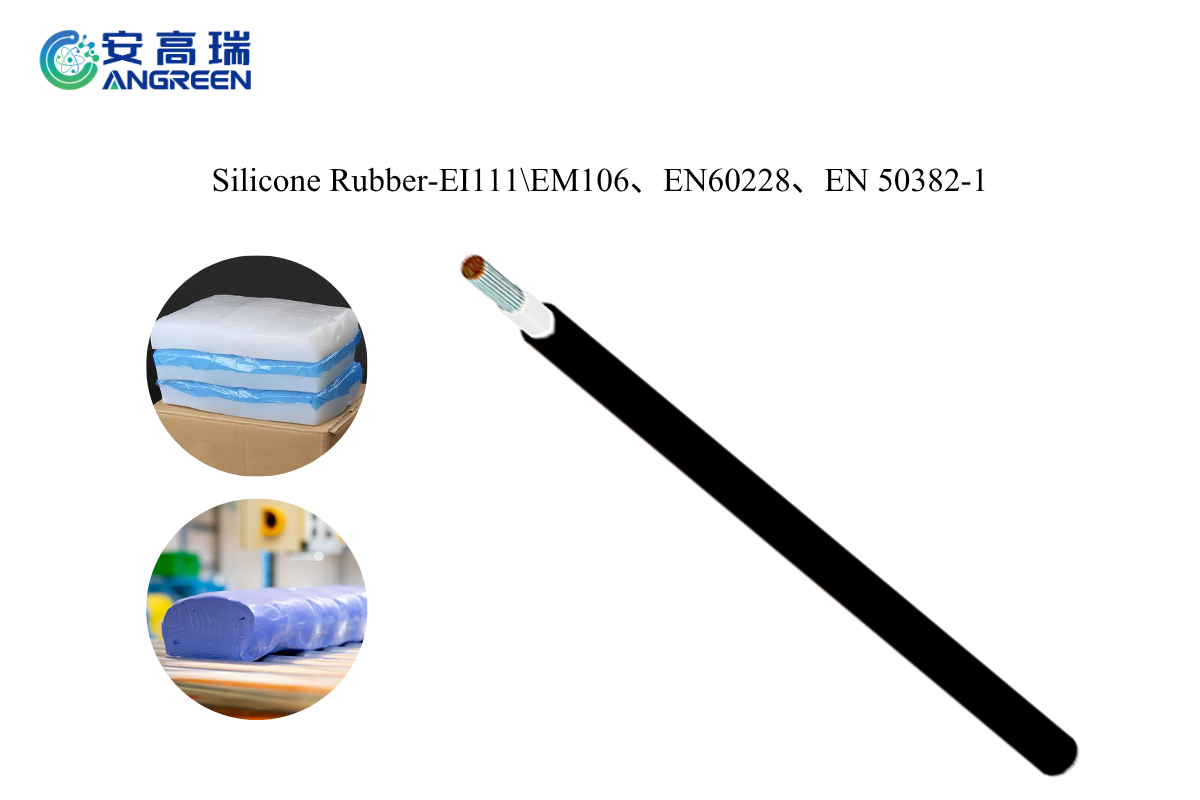

180℃ Silicone Rubber for EI111\EM106 High-voltage Cable

The silicone material for high-voltage cables is primarily based on fumed silicone rubber and features a temperature rating of 180°C. It is suitable for manufacturing high-voltage cables for road vehicles, with products meeting the requirements for 180°C silicone materials—such as EI111 and EM106—specified in standards including ISO19642, ISO6722, LV216-2, and EN50382. It is applicable for use as insulation in EI111/EM106 type cables.

180℃ Silicone Rubber Fumed Compound for EI111\EM106 High-Voltage Cable (Precipitated Silica Grade(EI111 EM106)
Brand Number	PHCNC65-1E	Category	Silicon Rubber
Temperature Rating	180℃	Color	Transparent
Crosslinking Method	\
Appearance	Block-shaped	Processing Method	Extrusion
Application Scope	Suitable for EI111/EM106 type cable insulation. Meets the requirements for 180°C silicone rubber materials used in wires and cables, such as EN50382 EI111 and EM106.

PHYSICAL PROPERTIES
Color	Transparent			/
VOC	/	1~2	/	/
Hardness,Shore A	65±5	65	Shore A	GB/T531.1
Density	1.19±0.02	1.19	g/cm3	GB/T533
Tensile Strength	≥9	10.3	MPa	GB/T528
Tear Strength	≥40	52	kN/m	GB/T529
Oxygen index	≥26	28	/	GB/T10707
SHORT TERM THERMAL AGING (205℃, 240h)
Tensile Strength	≥5	8.1	MPa	GB/T528
Tensile Elongation@break	≥200	386	%	GB/T528
WIRE LONG TERM THERMAL AGING (180℃,3000h)
Winding Test	No cracking	No cracking	/	ISO 19642
Withstand Voltage	No break	No break	/	ISO 19642
ELECTRICAL PROPERTIES
Volume Resistivity	≥1.0×10^15	1.7*10^16	Ω·cm	GB/T1692
Breakdown strength	≥24	28	kV/mm	GB/T1695
Dissipation Factor(1kHz)	/	0.001	/	ASTM D150
Dielectric Constant(1kHz)	/	2.7	/	ASTM D150
OPERATING CONDITION
Long term operating temperature	-50℃ ~ 180℃
Long term use humidity	5% ~ 90%
ENVIRONMENTAL REQUIREMENTS
Complies with RoHS and REACH environmental requirements.
Platinum catalysis:120C*8min The performance of the color products is different from the above typical values These properties are not to be construed as specifications, just for your consideration. The products meet the requirements of 180℃ silicone materials for cables specified in ISO19642,ISO6722,LV216-2 and EN50382 EI111 、EM106
