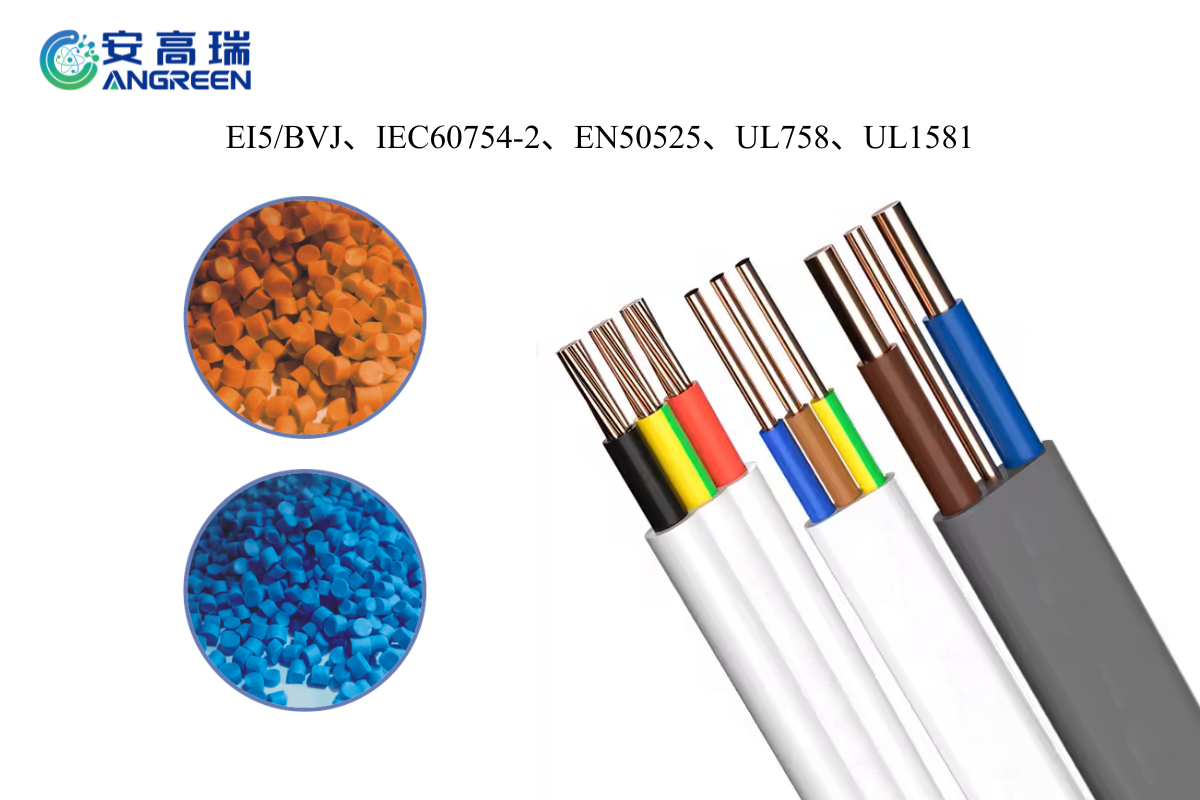

EI5/BVJ Silane-XLPO For Electrical Wiring Wire

ANGREEN Silane self-crosslinking XLPO material for building electrical wiring can be used to manufacture various types of building wires—such as BVJ and EI5 types—that comply with international standards like IEC 60754-2 and EN 50525. It undergoes natural crosslinking (curing) at ambient temperature.

Brand number	GW-BYJ-01	Category	XLPE/PO
Temperature rating	105℃	Color	Full color range
Crosslinking method	Silane Cross-linked
Appearance	Pellets	Processing Method	Extrusion
Product Features	Halogen-free, low smoke emission, long-term aging resistance, easy processability, wear resistance, and compliance with ROHS and REACH requirements.
Application Scope	EI5,Constructionfabrics, wires, etc..
GW-GF-02	Material A: GW-BYJ-01(A), Material B: GW-BYJ-01(B),mix the two evenly in a 95/5 ratio.

Technical Specifications

Physical Properties
Property	Requirement	Typical Value	Unit	Test method
Density	1.45-1.55	1.5	g/cm3	ISO 1183
Hardness at 15"	95±3	95	Shore A	ISO 868
Tensile Strength	≥ 10	12.5	Mpa	ISO 527
Elongation at break	≥ 125	180	%	ISO 527
Thermal elongation 0.2MPa×200℃×15min
Elongation under load	≤ 100	30-40	%	GB/T 2951
Permanent deformation	≤25	0	%	GB/T 2951
Aging performance 136℃×168h
Change rate of tensile strength	≤±30	15	%	GB/T2951.12
Change rate of elongation at break	≤±30	-10	%	GB/T2951.12
Impact brittlement temperature（-40 ºC)	≤ 15/30	0/30	PCS	GB/T 5470
Volume Resistivity20℃ (Alternating Polarity Method)	≥1*10^14	2.0*10^14	Ω .cm	ASTM D257
Dielectric strength	≥20	25	MV/m	DIN EN 6024
Flame Retardant Properties
LOI	≥30	35	%	GB/T2406
Smoke density (flamed)	Ds max	90	/	GB/T8627
Halogen-Free Properties
Property	Requirement	Typical value	Unit	Test method
Halogen gas content	≤5.0	0	mg/g	IEC60754-2
PH	≥4.3	4.9	/	IEC60754-2
Electrical conductivity	≤ 10	0.61	us/mm	IEC60754-2
