$E-Beam XLPO For Ship Cable（SHF1\SHF2）$

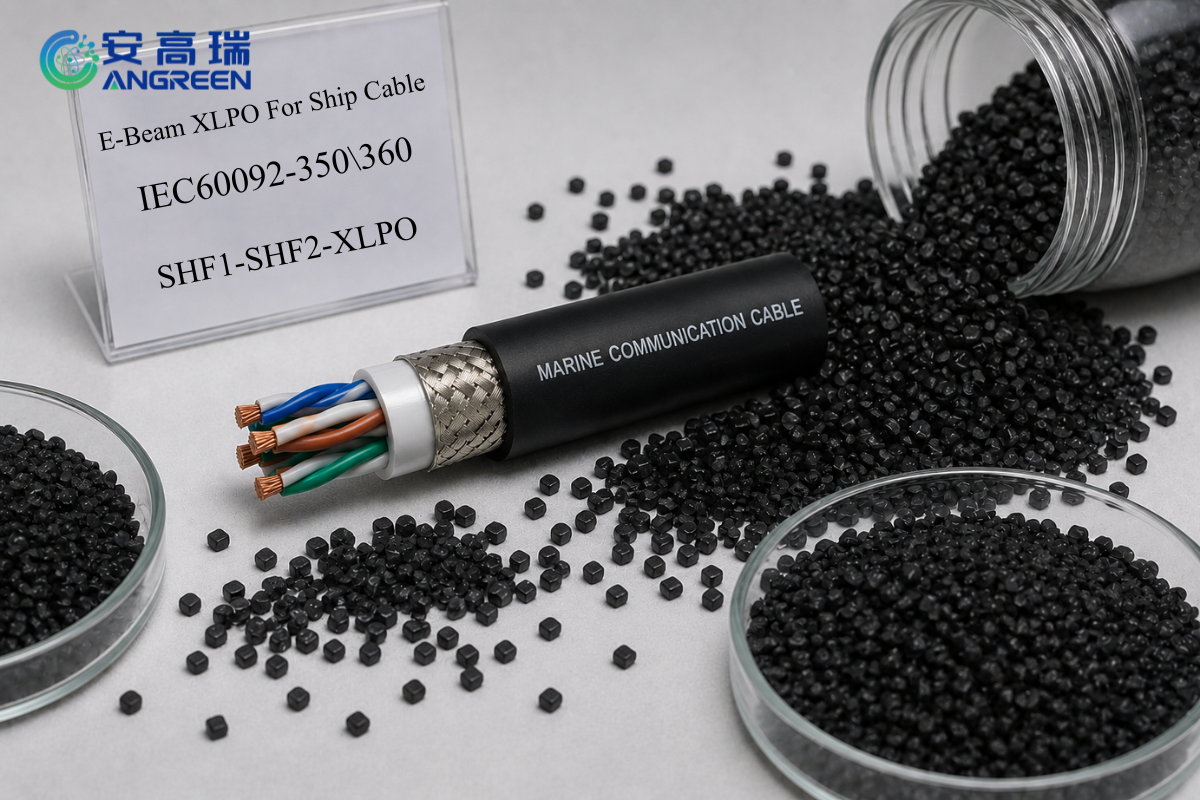

E-Beam XLPO For Ship Cable（SHF1\SHF2）

The XLPO material used for marine cables is an irradiation-crosslinked polyolefin material featuring excellent flame retardancy, oil resistance, and resistance to seawater corrosion. It complies with the relevant requirements of IEC 60092-360 and is suitable for use in various types of Ship Cable and Submarine Cable.

Brand Number	PFXBK95459	Category	LSZH-SHF2
Temperature Rating	105℃	Color	Black
Crosslinking Method	Irradiated Cross-linked	Hardness	95±3(Shore A)
Appearance	Granular	Processing Method	Extrusion
Product Features	Excellent flame retardancy, oil resistance, and resistance to seawater corrosion.
Application Scope	Compliant with the IEC 60092-360 standard, this cable compound is suitable for marine cables requiring oil-resistance specifications.

Technical Characteristics
Testing items	VALUE	Typical Value	UNIT	Method
Density(20℃)	--	1.55	g/cm3	GB/T 1033
Tensile strength	≥10	12.5	MPa	GB/T 1040.2
Elongation at break	≥120	160	%	GB/T 1040.2
200℃,0.2Mpa, 15min Hot extension
The elongation rate under load	≤100	10-25	%	GB/T 2951.21
Permanent rate of change after cooling	≤15	0	%	GB/T 2951.21
120±2℃, 168H Heat deterioration
Rate of change in the tensile strength	≤±30	12	%	GB/T 2951. 12
Rate of change of fracture elongation	≤±30	- 10	%	GB/T 2951. 12
(-40℃)Impact brittlement temperature	≤15/30	0/30	PCS	GB/T5470
(20℃)Volume resistivity	≥1.0×10^10	1.5×10^10	Ω·m	GB/T1410
(20℃)Dielectric strength	≥20	22	MV/m	GB/T 1408. 1
100±2℃, 168H Resistant to IRM902#oil
Rate of change in the tensile strength	≤±40	-25	MPa	GB/T 2951. 12
Rate of change of fracture elongation	≤±40	- 10	%	GB/T 2951. 12
1mol 23±2℃, 168H Acid resistant(oxalic acid)concentration 1mol
Rate of change in the tensile strength	≤30	- 18	%	GB/T 2951. 12
Elongation at break	≥100	198	%	GB/T 2951. 12
1mol 23±2℃, 168H Alkali resistance(NaOH)concentration 1mol
Rate of change in the tensile strength	≤30	-21	%	GB/T 2951. 12
Elongation at break	≥100	195	%	GB/T 2951. 12
LOI	≥35	38	%	GB/T2406
Flame retardant cables	Bundle A		/	IEC60332-3-22
HCl and HBr gas releases	≤2	0	mg/g	GB/T17650
Combustion gas PH	≥4.3	5.8	\	GB/T17650
Combustion gas conductivity	≤10	5	μs/mm	GB/T17650
Cable light transmittance	≥60	85	%	IEC61034-2
Smoke density
Flaming	≤100	89	\	GB/T8323
Flameless	≤250	230	\	GB/T8323
