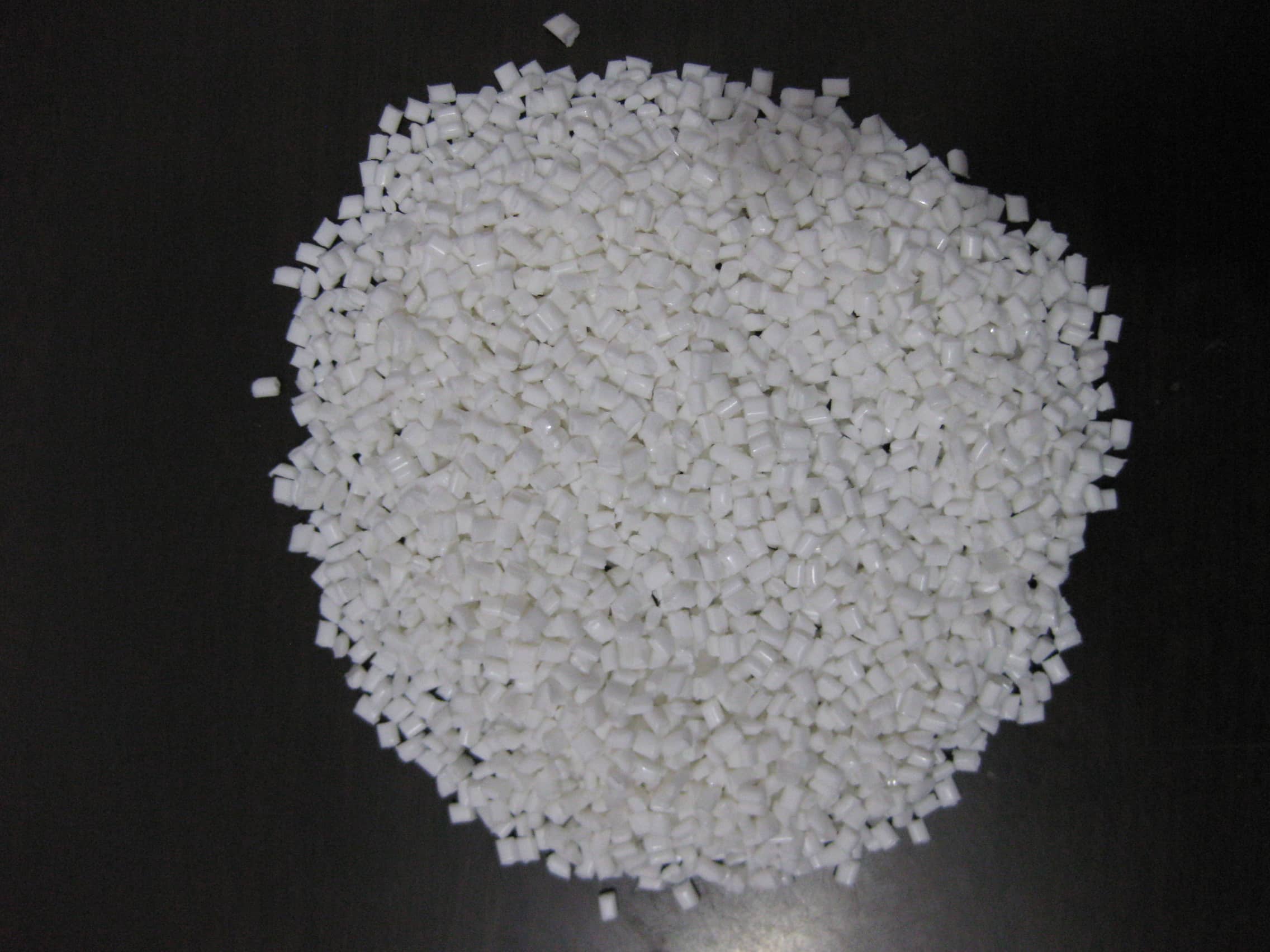

Angreen's flame-retardant PVC series products can be used to produce wires and cables, transparent hoses, black and white hoses, etc.
PROPERTIES | VALUE | Typical value | UNIT | Method |
PHYSICAL PROPERTIES | ||||
Hardness 15S reading |6mm Swatches | 79±2 | 79 | Shore D | GB/T 2411 |
Specific Gravity | 1.58±0.02 | 1.58 | g/cm3 | GB/T 1033 |
Tensile strength | ≥ 38 | 38 | MPa | GB/T 1040 |
Elongation at break | ≥ 75 | 80 | % | GB/T 1040 |
UL Temperature rating | 60 | 60 | ℃ | UL |
Brittleness Temperature | -45 | -45 | ℃ | GB/T5470 |
Thermal stability | ≥ 60 | 61 | Minute | ISO 182A |
melt flow rate (P=10kgs, g/10min) | 0.90 ~ 1.00 | 0.95 | g/10 min | \ |
FLAME CHARACTERISTICS | ||||
Flame retardant rating | V0 | V0 | / | UL94 |
PLASTICIER | DINP | |||
PROCESSING PARAMETERS OF extrusion | ||||
Maximum Moisture Conten | 0.02 | % | — | |
Extruder Length/Diameter Ratio(L/D) | 25 : 1 TO 30:1 | — | ||
Screw Speed | 15-85 | rpm | — | |
One Zone Temperature | 145±5 | ℃ | — | |
Two Zone Temperatures | 150±5 | ℃ | — | |
Three Zone Temperature | 155±5 | ℃ | — | |
Four Zone Temperature | 160±5 | ℃ | — | |
Cross-head Temperature | 160±5 | ℃ | — | |
Die Temperature | 155±5 | ℃ | — | |
Baking temperature | 80 * 3 | ℃*h | — |
